National Panasonic RF-2200
"Cougar 2200" Portable Shortwave Receiver

RF-2200

    Although RF-2200 was once my best receiver, I lost it years ago.

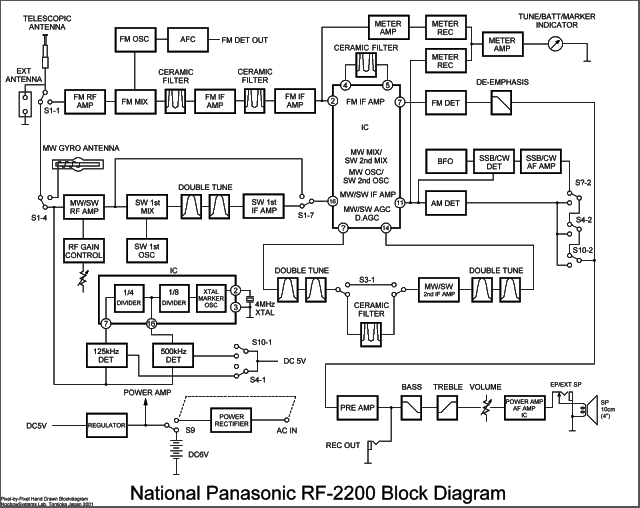

Take a look at its block diagram; you'll see the wonderful design of this analog portable.

Click here for PDF file
Information provided by Mr. Peter Cox in Tasmania. Thanks Peter!

Click here for larger image
Information provided by WC. Thanks!


Return to Restoration Projects
Return to NoobowSystems Lab. Home

Copyright(C) NoobowSystems Lab. Tomioka, Japan 2001, 2005

http://www.noobowsystems.org/

Dec. 11, 2001 Created.
Jan. 20, 2005 Retouched.

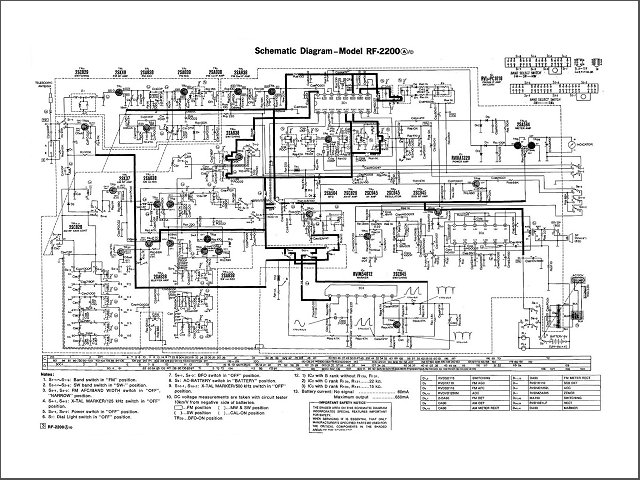

Oct. 02, 2005 Added circuit diagram.
